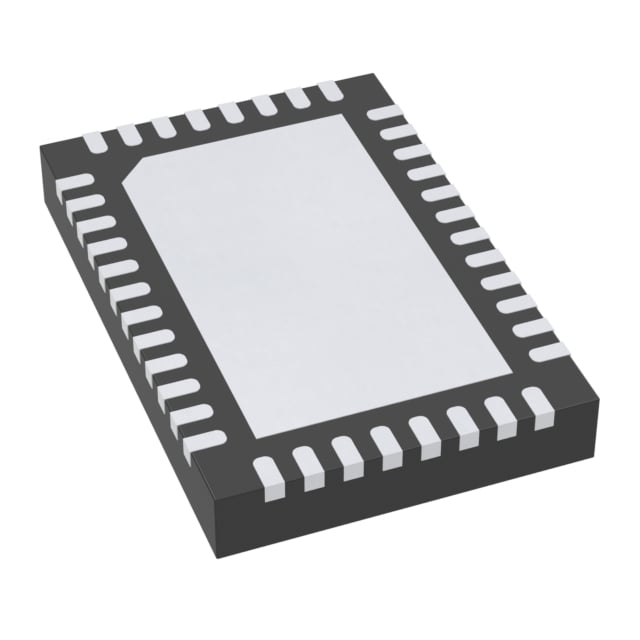

TUSB1046A-DCIRNQR TI USB Type-C Redriver | 40-WQFN (6x4) | 10Gbps, 2:1 MUX

Product Overview

The TUSB1046A-DCIRNQR is a high-performance USB Type-C redriver from Texas Instruments, designed to support USB 3.2 Gen 2 (10 Gbps) data rates. It integrates a 2:1 multiplexer/demultiplexer for switching between two USB Type-C ports or alternate modes such as DisplayPort. The device is housed in a compact 40-pin WQFN (6x4 mm) package, making it ideal for space-constrained applications. It features adaptive equalization, linear redriver functionality, and low power consumption, ensuring signal integrity over long PCB traces and cables.

Detailed Technical Specifications

Key Features

• Supports USB 3.2 Gen 2 (10 Gbps) and DisplayPort 1.4 (HBR3)
• Integrated 2:1 multiplexer/demultiplexer for port switching
• Adaptive linear equalization for extended reach
• Low power consumption: 300 mW typical
• Small footprint: 40-WQFN (6x4 mm) package
• I²C control interface for configuration
• Built-in ESD protection up to ±8 kV HBM
• Compliant with USB Type-C specification rev 1.3

Target Applications

• 5G base stations (e.g., Nokia AirScale, Ericsson Radio System)
• Automotive infotainment dashboards (e.g., Tesla Model 3 center display)
• Docking stations and port replicators (e.g., Dell WD19TB)
• Notebook and tablet USB-C hubs (e.g., Lenovo ThinkPad USB-C Dock)
• High-end monitors with USB-C input (e.g., Dell UltraSharp U2723QE)
• Virtual reality headsets (e.g., Oculus Quest 2 link cable)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TUSB1046A-DCIRNQR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
