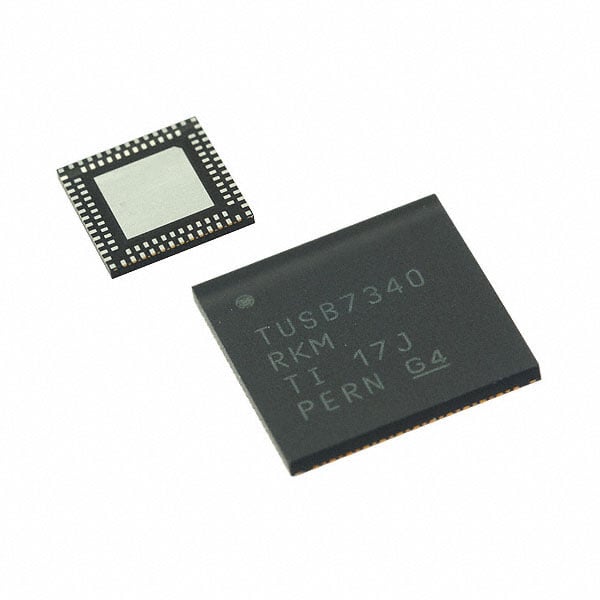

TUSB7340IRKMT TI USB 3.0 Host Controller | 100-WQFN-MR (9x9) | 4 Ports, SuperSpeed

Product Overview

The TUSB7340IRKMT is a high-performance USB 3.0 (SuperSpeed) host controller from Texas Instruments. It integrates four downstream ports compliant with the USB 3.0 specification, offering data transfer rates up to 5 Gbps per port. The device is housed in a compact 100-pin WQFN-MR (9x9 mm) package, making it ideal for space-constrained applications. It supports xHCI (eXtensible Host Controller Interface) for seamless software integration and backward compatibility with USB 2.0 and USB 1.1 devices.

Detailed Technical Specifications

Key Features

• Four USB 3.0 SuperSpeed ports with 5 Gbps data rate
• PCIe Gen2 x1 host interface for high bandwidth
• xHCI 1.0 compliant for easy software integration
• Backward compatible with USB 2.0 and USB 1.1
• Advanced power management with multiple link states
• Built-in termination and pull-up/pull-down resistors
• Supports battery charging (BC 1.2) on downstream ports
• Industrial temperature range (-40°C to +85°C)
• Compact 100-WQFN-MR package (9x9 mm)

Target Applications

• 5G base stations (e.g., Nokia AirScale, Ericsson Radio System) for high-speed data transfer
• Automotive infotainment and dashboard systems (e.g., Tesla Model 3, BMW iDrive) for USB connectivity
• Industrial PCs and embedded systems (e.g., Advantech, Kontron) for reliable USB expansion
• Medical imaging equipment (e.g., GE Healthcare, Siemens) for fast data acquisition
• Gaming consoles and docking stations (e.g., Nintendo Switch, Dell WD19) for peripheral connectivity

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TUSB7340IRKMT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

TUSB7340IRKMT 是德州儀器（TI）推出的高性能 USB 3.0（SuperSpeed）主機控制器。它集成四個符合 USB 3.0 規範的下行端口，每個端口數據傳輸速率高達 5 Gbps。該器件採用緊湊的 100 引腳 WQFN-MR（9x9 mm）封裝，非常適合空間受限的應用。它支持 xHCI（可擴展主機控制器接口），實現無縫軟件集成，並向後兼容 USB 2.0 和 USB 1.1 設備。

詳細技術參數

核心特性

• 四個 USB 3.0 SuperSpeed 端口，數據速率 5 Gbps
• PCIe Gen2 x1 主機接口，提供高帶寬
• 符合 xHCI 1.0 標準，便於軟件集成
• 向後兼容 USB 2.0 和 USB 1.1
• 高級電源管理，支持多種鏈路狀態
• 內置終端電阻和上拉/下拉電阻
• 支持下行端口電池充電（BC 1.2）
• 工業溫度範圍（-40°C 至 +85°C）
• 緊湊的 100-WQFN-MR 封裝（9x9 mm）

典型應用場景

• 5G 基站（如 Nokia AirScale、Ericsson Radio System），用於高速數據傳輸
• 汽車信息娛樂和儀表板系統（如 Tesla Model 3、BMW iDrive），提供 USB 連接
• 工業 PC 和嵌入式系統（如 Advantech、Kontron），實現可靠的 USB 擴展
• 醫療成像設備（如 GE Healthcare、Siemens），用於快速數據採集
• 遊戲主機和擴展塢（如 Nintendo Switch、Dell WD19），連接外設

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 TUSB7340IRKMT 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
