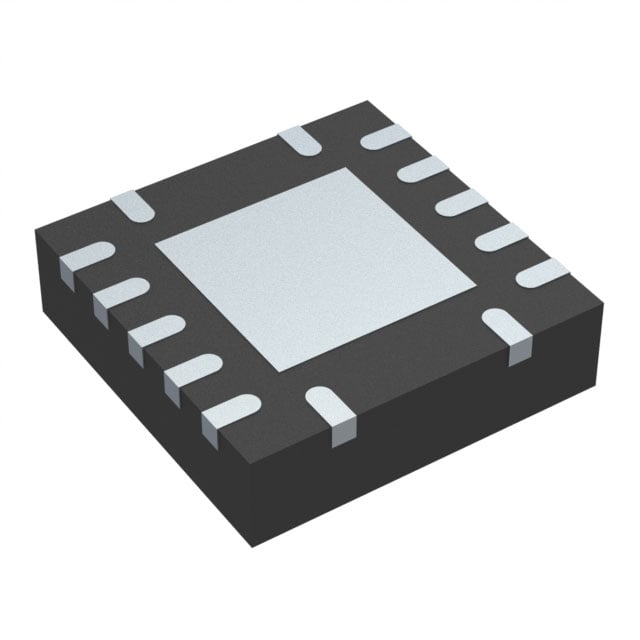

TXB0104RGYR TI Voltage Level Translator | 14-VQFN (3.5x3.5) | 4-Bit, Auto Direction

Product Overview

The TXB0104RGYR from Texas Instruments is a 4-bit bidirectional voltage-level translator with automatic direction sensing. It operates over a wide voltage range from 1.2V to 3.6V on the VCCA side and 1.65V to 5.5V on the VCCB side, making it ideal for multi-voltage systems. The device features a 14-pin VQFN package (3.5mm x 3.5mm) with a 0.5mm pitch, offering a compact solution for level translation in mixed-voltage environments. It supports data rates up to 100 Mbps and provides excellent ESD protection up to 8 kV (HBM).

Detailed Technical Specifications

Key Features

• Automatic direction sensing eliminates the need for direction control signals
• Wide voltage range supports 1.2V to 5.5V translation
• High data rate up to 100 Mbps suitable for SPI, UART, and GPIO
• Low quiescent current (10 µA) for power-sensitive applications
• Robust ESD protection (8 kV HBM) for industrial environments
• Small footprint 14-VQFN package saves board space

Target Applications

• 5G base station control boards (e.g., interfacing 1.8V FPGA with 3.3V microcontroller)
• Automotive dashboard display modules (e.g., connecting 3.3V processor to 5V LCD driver)
• Industrial sensor interfaces (e.g., 1.8V sensor to 3.3V PLC)
• Portable electronics (e.g., battery-powered devices with mixed-voltage ICs)
• Networking equipment (e.g., router GPIO level shifting)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TXB0104RGYR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
