TXS0101DRLR TI Voltage Level Translator | SOT-5X3 | 1.65V-3.6V, 1.8V-5.5V

Product Overview

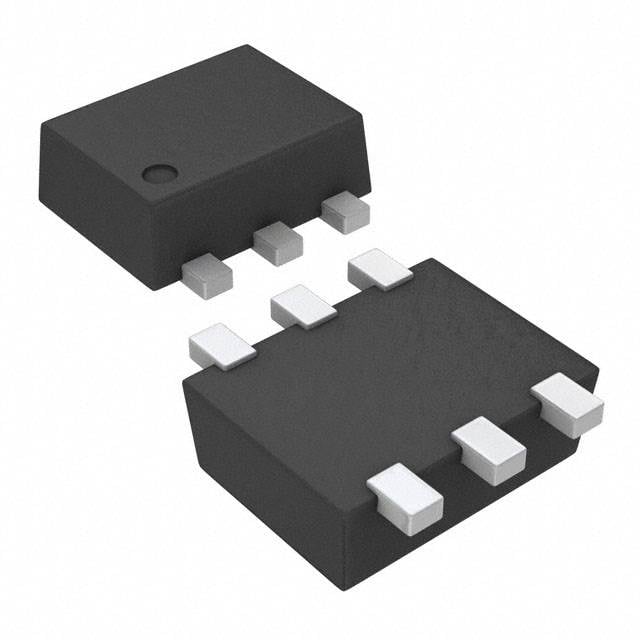

The TXS0101DRLR is a 1-bit bidirectional voltage-level translator from Texas Instruments, designed for open-drain and push-pull applications. It provides automatic direction sensing and operates without a direction control pin, making it ideal for mixed-voltage systems. The device translates between two voltage nodes: VCCA (1.65V to 3.6V) and VCCB (1.8V to 5.5V), supporting data rates up to 24 Mbps for push-pull and 2 Mbps for open-drain. Housed in a compact SOT-5X3 package, it is suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• Automatic direction sensing; no direction control pin required
• Supports both push-pull and open-drain applications
• Low quiescent current (1.5 µA typical)
• High ESD protection: ±8 kV HBM
• Small SOT-5X3 package for space-saving designs
• Glitch-free power sequencing

Target Applications

• 5G base station control interfaces (e.g., FPGA to RF transceiver level translation)
• Automotive dashboard displays (e.g., MCU to display driver voltage translation)
• Industrial sensor interfaces (e.g., 3.3V sensor to 5V PLC input)
• Portable electronics (e.g., battery-powered IoT devices with mixed-voltage peripherals)
• GPIO expansion in multi-voltage systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TXS0101DRLR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
