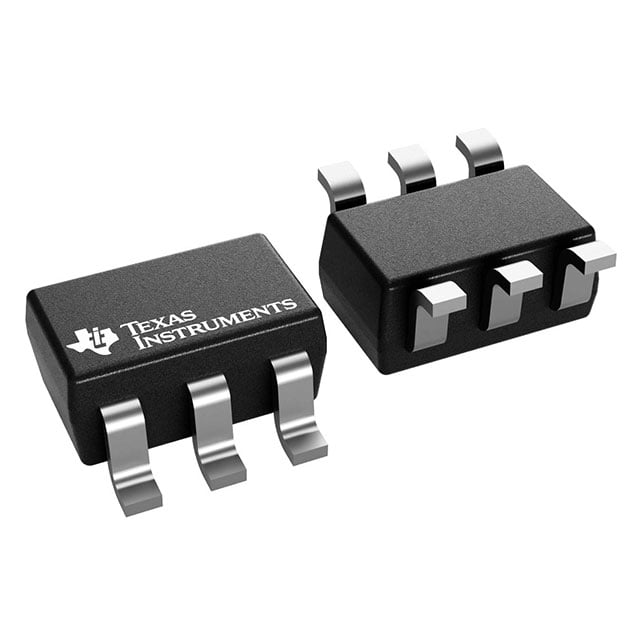

TXU0101DCKR TI Single-Bit Voltage-Level Translator | SC-70-6 | 1.65V-5.5V, 100Mbps

Product Overview

The TXU0101DCKR from Texas Instruments is a single-bit, direction-controlled voltage-level translator designed for mixed-voltage digital systems. It provides bidirectional level shifting between two voltage nodes, supporting a wide supply voltage range from 1.65V to 5.5V on both VCCA and VCCB. Housed in a compact SC-70-6 package, this device is ideal for space-constrained applications requiring reliable signal translation up to 100 Mbps.

Detailed Technical Specifications

Key Features

• Bidirectional voltage translation with direction control pin (DIR)
• Wide supply range: 1.65V to 5.5V on both ports
• High-speed operation: up to 100 Mbps
• Low propagation delay: 3.5 ns typical
• Ultra-small SC-70-6 package saves board space
• Robust ESD protection: ±8 kV HBM
• Power-off high-impedance outputs

Target Applications

• 5G base station control interfaces (e.g., FPGA to RF transceiver level shifting)
• Automotive dashboard display modules (e.g., MCU to display driver translation)
• Industrial sensor networks (e.g., 3.3V sensor to 1.8V processor)
• Portable electronics (e.g., battery management IC to application processor)
• IoT edge devices (e.g., low-power MCU to wireless module)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TXU0101DCKR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
