TXU0304DTRR TI Voltage Level Translator | 12-X2QFN（1.7X1） | 4-Bit, 1.1V-5.5V

Product Overview

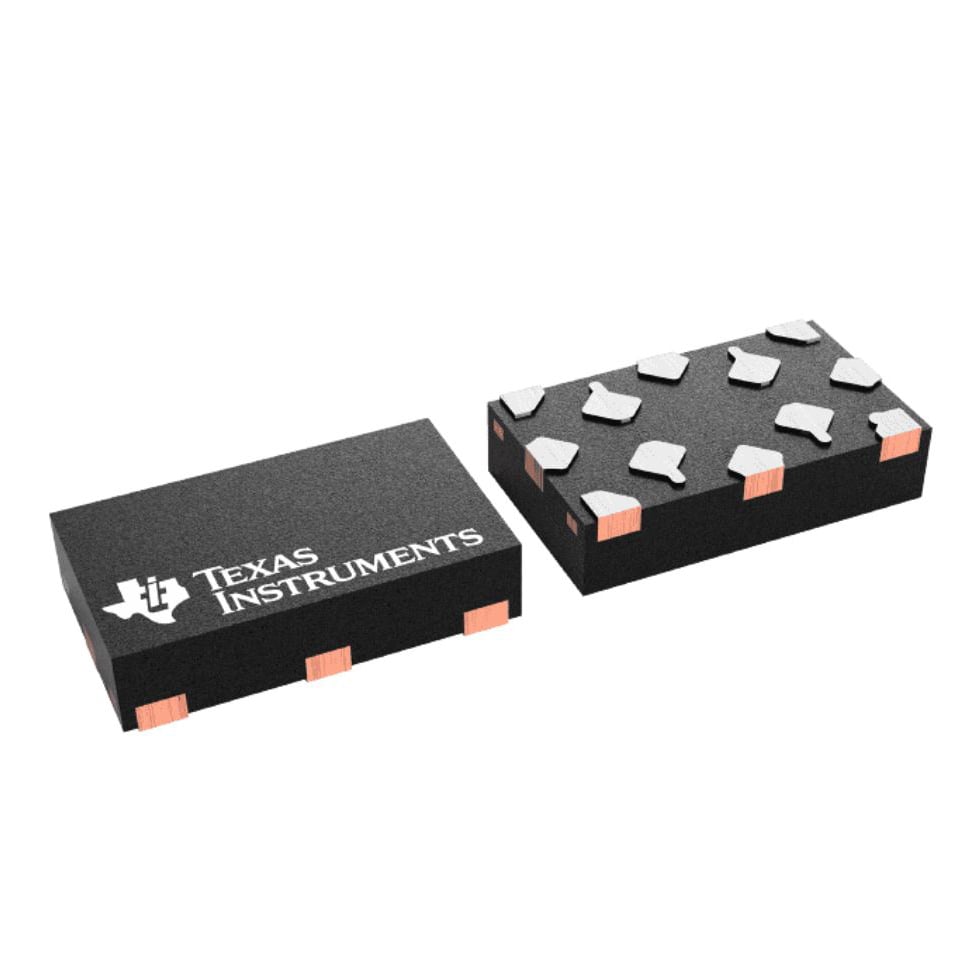

The TXU0304DTRR from Texas Instruments is a 4-bit voltage-level translator with automatic direction sensing. It operates over a wide voltage range from 1.1V to 5.5V on both A and B ports, making it ideal for multi-voltage systems. The device is housed in a compact 12-X2QFN (1.7mm x 1mm) package, saving board space. It supports data rates up to 200 Mbps and features low power consumption with 4 μA quiescent current. The TXU0304DTRR is designed for open-drain and push-pull applications, providing bidirectional translation without a direction control pin.

Detailed Technical Specifications

Key Features

• Automatic direction sensing eliminates direction control pin
• Wide supply voltage range: 1.1V to 5.5V on both ports
• High data rate: up to 200 Mbps
• Low power consumption: 4 μA quiescent current
• Small package: 12-X2QFN (1.7mm x 1mm)
• Supports open-drain and push-pull applications
• ±24 mA output drive at 3.3V
• ESD protection: HBM ±8 kV, CDM ±1.5 kV
• Industrial temperature range: -40°C to +125°C

Target Applications

• 5G base stations: level translation between baseband and RF control interfaces
• Automotive dashboard: bridging 1.8V MCU to 3.3V display modules
• Industrial sensors: translating sensor outputs to logic levels
• Portable electronics: interfacing low-power processors with peripherals
• Networking equipment: connecting different voltage domains in switches and routers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for TXU0304DTRR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
