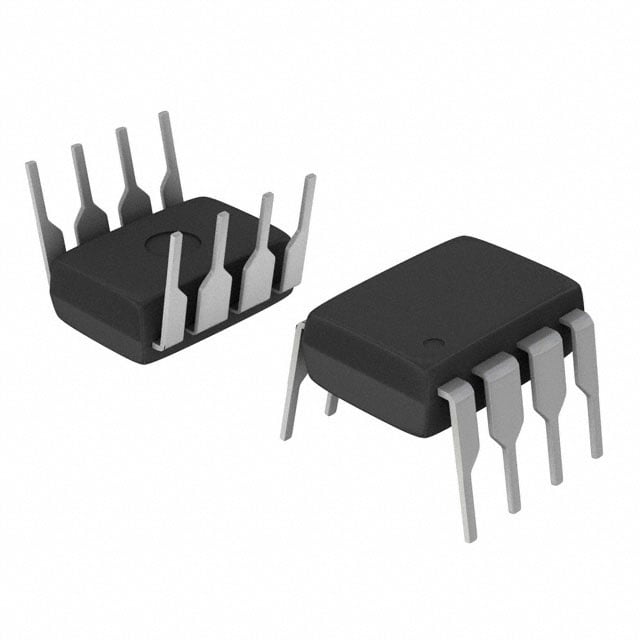

UC2842N TI PWM Controller | 8-PDIP | 48% Duty Cycle, 500kHz

Product Overview

The UC2842N is a high-performance current-mode PWM controller from Texas Instruments, designed for off-line and DC-to-DC converter applications. It features low startup current, trimmed oscillator discharge current, and a precision reference. The device operates at a switching frequency up to 500 kHz and provides a duty cycle range of 0% to 48%. Housed in an 8-pin PDIP package, it is ideal for cost-sensitive and space-constrained power supply designs.

Detailed Technical Specifications

Key Features

• Current-mode operation for improved transient response and simplified loop compensation
• Low startup current (< 1 mA) for efficient power-up
• Trimmed oscillator discharge current for precise frequency control
• Under-voltage lockout (UVLO) with hysteresis
• High-current totem-pole output for driving MOSFETs
• Internal precision reference (5V ± 2%)

Target Applications

• AC-DC adapters and chargers for consumer electronics
• DC-DC converters in telecom infrastructure (e.g., 5G base station power supplies)
• Industrial power supplies for automation equipment
• Automotive power systems (e.g., dashboard power modules)
• LED lighting drivers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for UC2842N. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
