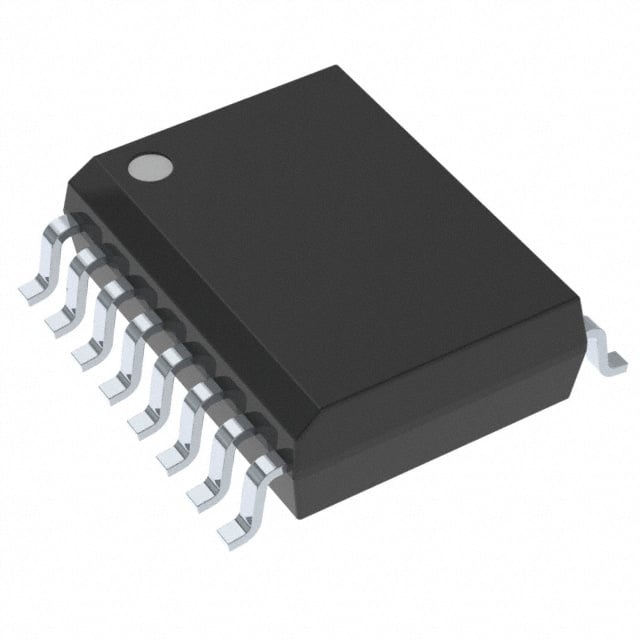

UC3872M TI Phase Shift Resonant Controller | 16-SSOP | 1MHz, 10.5V-20V

Product Overview

The UC3872M from Texas Instruments is a high-performance phase shift resonant controller designed for zero voltage switching (ZVS) full-bridge converters. It integrates all necessary control functions to simplify design and improve efficiency in high-power applications. The device operates at frequencies up to 1 MHz and supports a supply voltage range of 10.5V to 20V. Housed in a compact 16-SSOP package, it is ideal for space-constrained power systems.

Detailed Technical Specifications

Key Features

• Phase shift resonant control for ZVS full-bridge converters
• Programmable dead time to optimize ZVS
• 1 MHz maximum switching frequency for reduced magnetics size
• ±1.5 A peak gate drive capability
• Under-voltage lockout (UVLO) with hysteresis
• Soft-start and shutdown control
• Low startup current (150 µA typical)

Target Applications

• 5G base station power supplies (e.g., 48V to 12V DC-DC converters)
• Automotive dashboard power modules (e.g., infotainment systems)
• Industrial power converters (e.g., welding machines, battery chargers)
• Telecom rectifiers and server power supplies
• LED lighting drivers for high-power streetlights
