UCC21530DWK TI Gate Driver | 14-SOIC | 4A Peak, 5.7kV Isolation

Product Overview

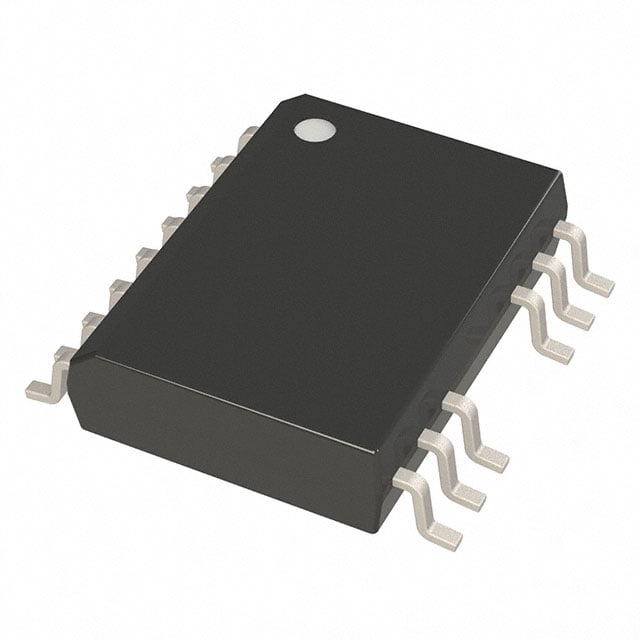

The UCC21530DWK is a high-performance, dual-channel isolated gate driver from Texas Instruments, designed to drive both high-side and low-side power switches in a wide range of applications. With a peak output current of 4A and a 5.7kVrms isolation rating, it provides robust and reliable driving capability for IGBTs, MOSFETs, and SiC devices. The device is housed in a compact 14-SOIC package, making it suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• Dual-channel isolated gate driver with 4A peak source and sink current
• 5.7 kVrms reinforced isolation per UL 1577
• Up to 150 V/ns common-mode transient immunity (CMTI)
• Programmable dead time (DT) pin
• Disable pin for output enable/disable
• Under-voltage lockout (UVLO) for both input and output
• Low propagation delay (19 ns typical) and tight channel-to-channel matching
• Wide body SOIC-14 package with >8 mm creepage

Target Applications

• Isolated DC-DC power supplies for 5G base stations
• On-board chargers (OBC) and DC-DC converters in electric vehicles
• Solar inverters and motor drives
• Industrial power supplies and UPS systems
• Server and telecom power modules

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for UCC21530DWK. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
