UCC21530DWKR TI Gate Driver | 14-SOIC | 4A Peak, 5.7kV Isolation

Product Overview

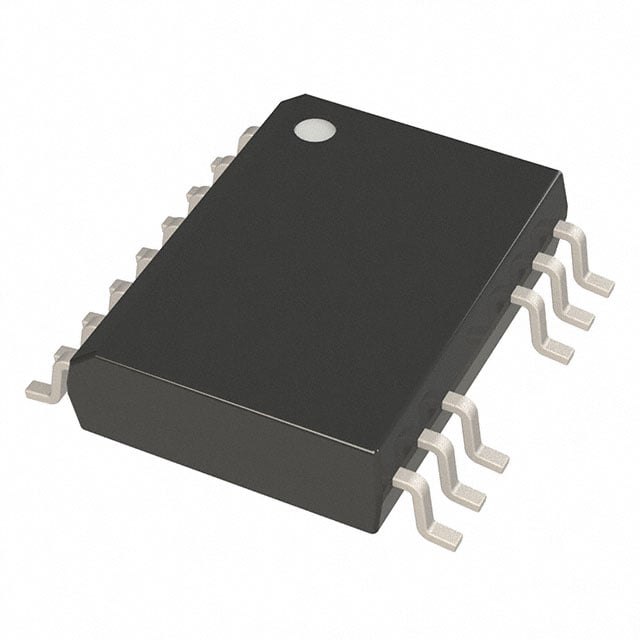

The UCC21530DWKR is a high-performance isolated dual-channel gate driver from Texas Instruments, designed for driving MOSFETs, IGBTs, and SiC devices. With a 4-A peak source and sink current, it provides robust drive capability for high-power applications. The device features 5.7-kVrms reinforced isolation, enabling reliable operation in harsh environments. Housed in a compact 14-SOIC package, it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Reinforced isolation up to 5.7 kVrms
• 4-A peak drive current for fast switching
• 19-ns typical propagation delay
• >100-V/ns common-mode transient immunity (CMTI)
• Wide supply voltage range: 6.5 V to 25 V
• Enable and disable functions for system control
• Overcurrent protection (DESAT) for IGBTs
• Undervoltage lockout (UVLO) for both channels

Target Applications

• 5G base station power supplies
• Server and telecom power converters
• Industrial motor drives (e.g., Siemens SINAMICS)
• Solar inverters (e.g., Huawei SUN2000)
• Electric vehicle charging stations
• Medical imaging equipment (e.g., GE Revolution CT)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for UCC21530DWKR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
