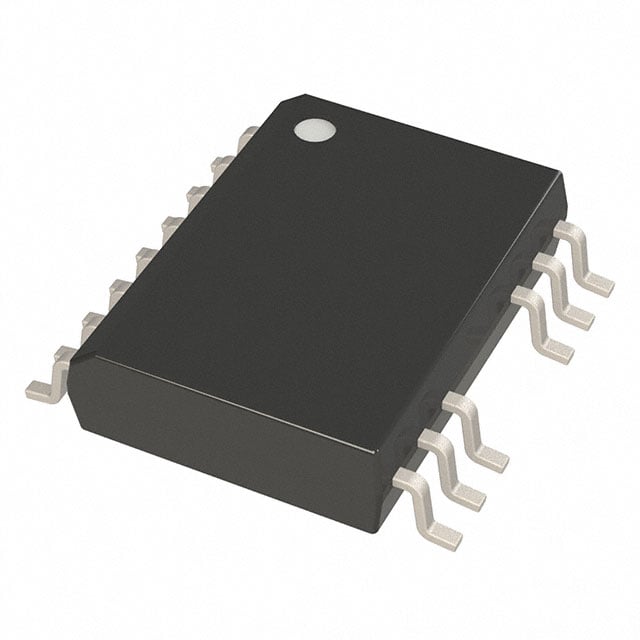

UCC21530QDWKQ1 TI Isolated Gate Driver | 14-SOIC | 4A/6A Peak, 5.7kVrms

Product Overview

The UCC21530QDWKQ1 is a high-performance, isolated dual-channel gate driver from Texas Instruments, designed for driving SiC MOSFETs and IGBTs in automotive and industrial applications. With a 5.7kVrms isolation rating and 4A/6A peak source/sink current, it enables efficient and reliable switching in power converters. The device is qualified to AEC-Q100 for automotive applications and comes in a compact 14-SOIC package.

Detailed Technical Specifications

Key Features

• Dual-channel isolated gate driver with 5.7 kVrms isolation
• 4 A peak source and 6 A peak sink current
• 19 ns typical propagation delay
• High common-mode transient immunity (>100 V/ns)
• Wide supply voltage range (3 V to 18 V for input, up to 25 V for output)
• Enable and disable functions with shutdown pin
• Undervoltage lockout (UVLO) protection
• AEC-Q100 qualified for automotive applications

Target Applications

• Automotive traction inverters (e.g., Tesla Model 3 inverter)
• On-board chargers (OBC) for electric vehicles (e.g., BYD OBC)
• DC-DC converters in 5G base stations (e.g., Huawei 5G power modules)
• Industrial motor drives (e.g., Siemens SINAMICS drives)
• Solar inverters (e.g., SMA Sunny Boy inverters)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for UCC21530QDWKQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
