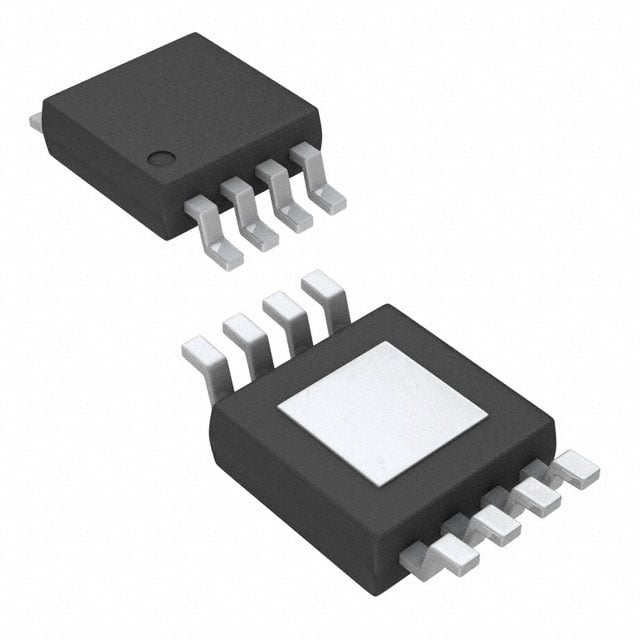

UCC27523DGN TI Dual Low-Side Gate Driver | 8-HVSSOP | 5A Peak, 4.5-18V

Product Overview

The UCC27523DGN is a dual-channel, low-side gate driver from Texas Instruments, designed to drive MOSFETs and IGBTs in high-speed switching applications. Housed in an 8-pin HVSSOP package, it delivers 5A peak source and sink current, enabling efficient power conversion in compact designs. With a wide supply voltage range of 4.5V to 18V, it supports various power topologies including buck converters, half-bridges, and full-bridges. The device features independent enable functions, undervoltage lockout (UVLO), and fast propagation delays (typically 13ns) for precise timing control.

Detailed Technical Specifications

Key Features

• Dual-channel low-side gate driver with 5A peak drive capability
• Independent enable pins for each channel
• Fast propagation delay (13ns) and rise/fall times (7ns)
• Wide supply voltage range (4.5V to 18V)
• UVLO protection with hysteresis
• TTL/CMOS compatible input thresholds
• Thermal shutdown protection
• Compact 8-HVSSOP package for space-constrained designs

Target Applications

• 5G base station power supplies: Driving MOSFETs in DC-DC converters for remote radio units (RRUs)
• Automotive dashboard displays: Gate drive for backlight LED drivers and power management ICs
• Industrial motor drives: Low-side gate drive for brushless DC (BLDC) motor controllers
• Solar inverters: Driving IGBTs in MPPT converters and grid-tie inverters
• Server and telecom power: High-frequency buck converters for point-of-load (POL) regulators

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for UCC27523DGN. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
