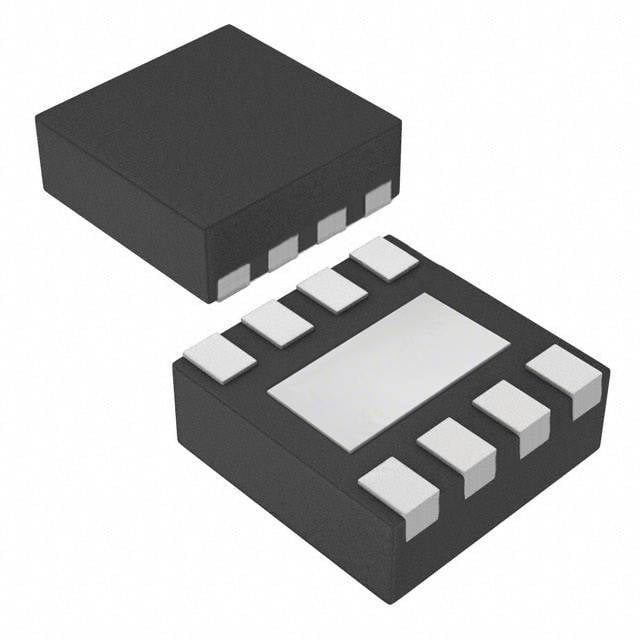

UCC27525DSDR TI Gate Driver | 8-SON(3x3) | Dual, 5A, 4.5-18V

Product Overview

The UCC27525DSDR from Texas Instruments is a dual-channel, high-speed, low-side gate driver capable of driving up to 5A peak source and sink current. It is designed for driving MOSFETs and IGBTs in power conversion applications. The device operates from a 4.5V to 18V supply voltage and features independent enable functions for each channel. Housed in a compact 8-pin SON (3x3 mm) package, it offers excellent thermal performance and space savings.

Detailed Technical Specifications

Key Features

• Dual-channel, independent gate drivers with enable
• 5A peak drive current for fast switching
• Wide supply voltage range: 4.5V to 18V
• Low propagation delay (17 ns typical)
• Fast rise/fall times (7 ns typical)
• UVLO protection on VDD
• Outputs held low when inputs floating
• Small 8-SON (3x3 mm) package

Target Applications

• Switch-mode power supplies (SMPS) for 5G base stations
• DC-DC converters for automotive infotainment and dashboard displays
• Motor drives for industrial automation
• Solar inverters and UPS systems
• Class-D audio amplifiers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for UCC27525DSDR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

UCC27525DSDR 是德州儀器推出的雙通道高速低側柵極驅動器，可提供高達 5A 的峰值源電流和灌電流。該器件專為驅動功率轉換應用中的 MOSFET 和 IGBT 而設計，工作電源電壓範圍為 4.5V 至 18V，每個通道具有獨立的使能功能。採用緊湊的 8 引腳 SON（3x3 mm）封裝，具有出色的熱性能和節省空間的優勢。

詳細技術參數

核心特性

• 雙通道獨立柵極驅動器，帶使能功能
• 5A 峰值驅動電流，實現快速開關
• 寬電源電壓範圍：4.5V 至 18V
• 低傳播延遲（典型值 17 ns）
• 快速上升/下降時間（典型值 7 ns）
• VDD 欠壓鎖定保護
• 輸入浮空時輸出保持低電平
• 小型 8-SON（3x3 mm）封裝

典型應用場景

• 5G 基站開關電源
• 汽車信息娛樂系統和儀表盤顯示的 DC-DC 轉換器
• 工業自動化中的電機驅動
• 太陽能逆變器和 UPS 系統
• D 類音頻放大器

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 UCC27525DSDR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
