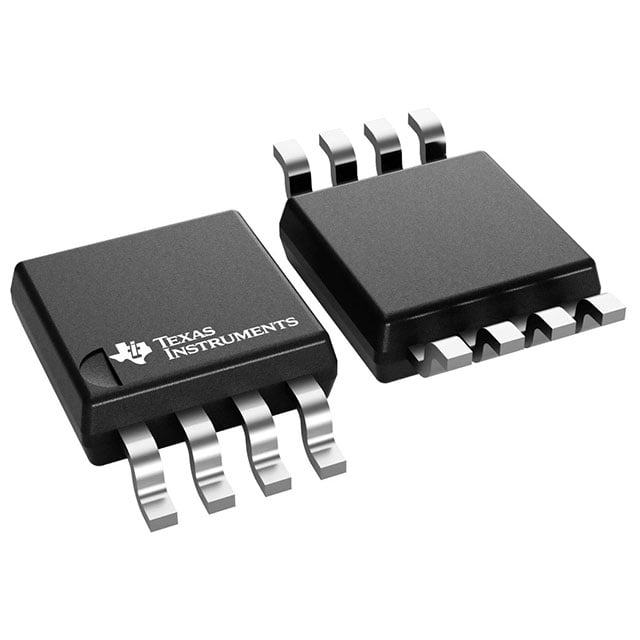

UCC28C45DGKR TI PWM Controller | 8-VSSOP | 1MHz, 50% Duty Cycle

Product Overview

The UCC28C45DGKR is a high-performance current-mode PWM controller from Texas Instruments, designed for off-line and DC-to-DC power supply applications. It features a 1MHz oscillator, 50% maximum duty cycle, and operates from a supply voltage range of 7V to 15V. Housed in an 8-VSSOP package, this device offers low startup current (0.5mA typical) and a precision reference (2.5V ±1%). The UCC28C45DGKR is ideal for isolated and non-isolated power converters requiring high efficiency and compact size.

Detailed Technical Specifications

Key Features

• Current-mode control for improved transient response and simplified loop compensation
• 1MHz oscillator with programmable frequency via external resistor and capacitor
• Low startup current (0.5mA) for efficient power-up
• Precision 2.5V reference with ±1% accuracy
• Under-voltage lockout (UVLO) with hysteresis
• Pulse-by-pulse current limiting
• Soft-start capability
• Totem-pole output driver with ±1A peak drive current

Target Applications

• 5G base station power supplies (e.g., isolated DC-DC converters for remote radio units)
• Automotive dashboard power modules (e.g., 12V to 3.3V converters for infotainment systems)
• Industrial power adapters (e.g., 24V to 5V converters for PLCs)
• Telecom power systems (e.g., -48V to 12V converters for line cards)
• LED lighting drivers (e.g., constant current boost converters for street lights)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for UCC28C45DGKR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
