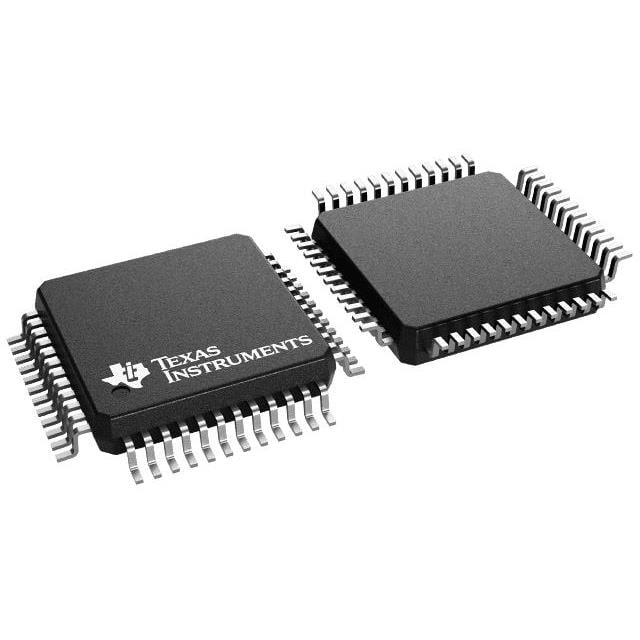

VSP2566PT TI Image Sensor Processor | 48-LQFP（7X7） | 12-Bit, 40MSPS, 6-Channel

Product Overview

The VSP2566PT from Texas Instruments is a high-performance, 6-channel, 12-bit analog-to-digital converter (ADC) specifically designed for image sensor processing applications. It integrates correlated double sampling (CDS), programmable gain amplifier (PGA), and a high-speed ADC in a compact 48-LQFP (7x7 mm) package. The device operates at conversion rates up to 40 MSPS, making it ideal for high-speed imaging systems such as digital cameras, medical imaging, and industrial inspection.

Detailed Technical Specifications

Key Features

• 6-channel simultaneous sampling with CDS and PGA
• Low noise: 0.5 LSB typical DNL
• Low power consumption: 330 mW at 40 MSPS
• On-chip reference and sample-and-hold
• 3-wire serial interface for configuration
• Lead-free and RoHS compliant

Target Applications

• Digital still cameras and camcorders
• Medical imaging systems (e.g., X-ray, ultrasound)
• Industrial machine vision and inspection
• Surveillance cameras
• Document scanners
• 5G base station monitoring cameras
• Automotive dashboard cameras

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for VSP2566PT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
